Quick Setup

Get a working ocean scene in under 5 minutes. This guide covers the minimal setup required to see waves in your project.

Prerequisites​

  • VROcean installed (Installation Guide)
  • A Unity project with URP configured
  • An empty scene or existing scene to add the ocean to

Step 1: Create the Scene System​

The SceneSystem is the central manager that coordinates all ocean components.

  1. Create an empty GameObject in your scene
  2. Name it OceanSystem
  3. Add the SceneSystem component

Alternatively, add it via code:

using UnityEngine;
using PlatypusIdeas.VROcean.Runtime.Scripts.Scene;

public class OceanSetup : MonoBehaviour
{
    void Start()
    {
        var oceanSystem = new GameObject("OceanSystem");
        oceanSystem.AddComponent<SceneSystem>();
    }
}

Step 2: Create the Ocean Simulator​

The OceanSimulator generates wave displacement and normal textures using FFT.

  1. Create a child GameObject under OceanSystem
  2. Name it OceanSimulator
  3. Add the OceanSimulator component
  4. Add the SurfaceLodRenderer component

Your hierarchy should look like this:

OceanSystem
└── OceanSimulator

Step 3: Create a Biome Profile​

The AquaticBiomeProfile stores all configuration for waves, lighting, and materials.

  1. In the Project window, right-click and select Create > Oceanic > Environment Profile
  2. Name it DefaultOcean
  3. Select the new profile to view it in the Inspector

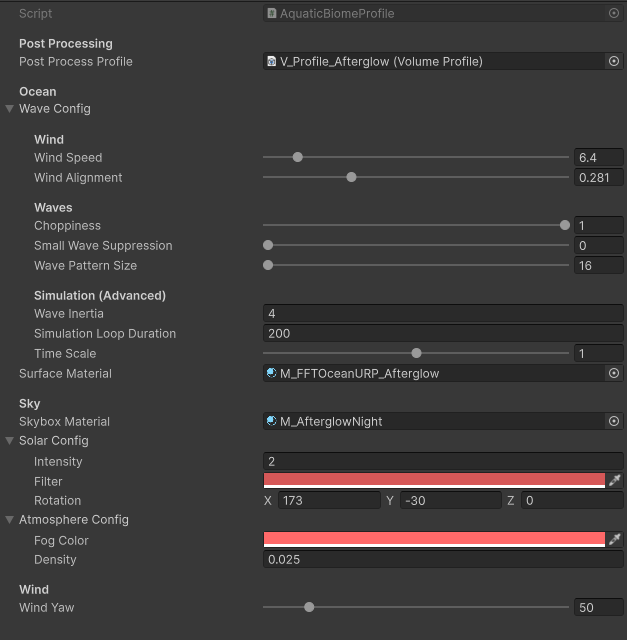

Biome Profile Inspector A new AquaticBiomeProfile with default settings

Assign the Ocean Material​

  1. Locate the included ocean material at Assets/PlatypusIdeas/VROcean/Runtime/Materials/M_Ocean.mat
  2. Drag it into the Surface Material field of your biome profile

Assign a Skybox Material​

  1. Locate an included skybox material (e.g., M_DaySky.mat or M_NightSky.mat)
  2. Drag it into the Skybox Material field

Step 4: Create a Post Processing Volume​

  1. Create an empty child gameobject under SceneSystem.
  2. Name it PostProcessVolume. Or whatever you like.
  3. Add a Volume component.

Step 5: Create a Reflection Probe​

  1. Create an empty child gameobject under SceneSystem.
  2. Name it BakedReflectionProbe. Or whatever you like.
  3. Add a Reflection Probe component.

Step 6: Wire Up the Components​

Now connect everything in the SceneSystem inspector:

FieldAssignment
Ocean ComputeDrag the OceanSimulator GameObject
Ocean Quadtree RendererDrag the SurfaceRenderer GameObject
Target ProfileDrag your DefaultOcean profile asset

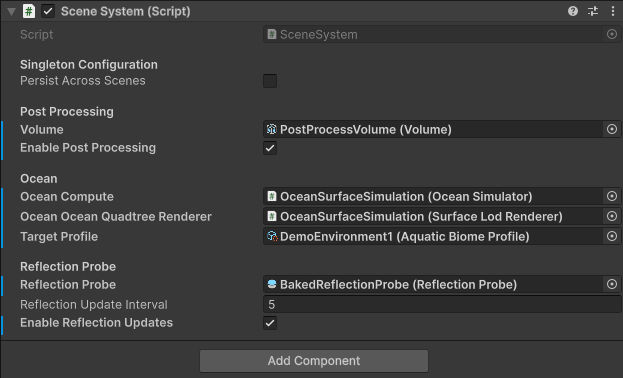

SceneSystem Wired SceneSystem with all references assigned

Step 7: Configure the Surface Renderer​

Select the SurfaceRenderer GameObject and configure:

FieldValue
Surface MaterialDrag the same M_Ocean.mat material
Ocean Size1024 (default, adjust as needed)
QualityMedium (good starting point)

Step 9: Add Lighting​

VROcean uses the scene's directional light for sun direction and color.

  1. Add a Directional Light if one doesn't exist (GameObject > Light > Directional Light)
  2. Position and rotate it to your desired sun angle
  3. The biome profile's Solar Config section can override these settings

Step 9: VR Camera​

  1. Locate the prefab VR_Player_Camera at Assets/PlatypusIdeas/VROcean/Samples/Prefabs
  2. Delete the default camera in your scene
  3. Drag and drop the VR_Player_Camera int othe scene

Step 10: Enter Play Mode​

Press Play. You should see animated ocean waves.

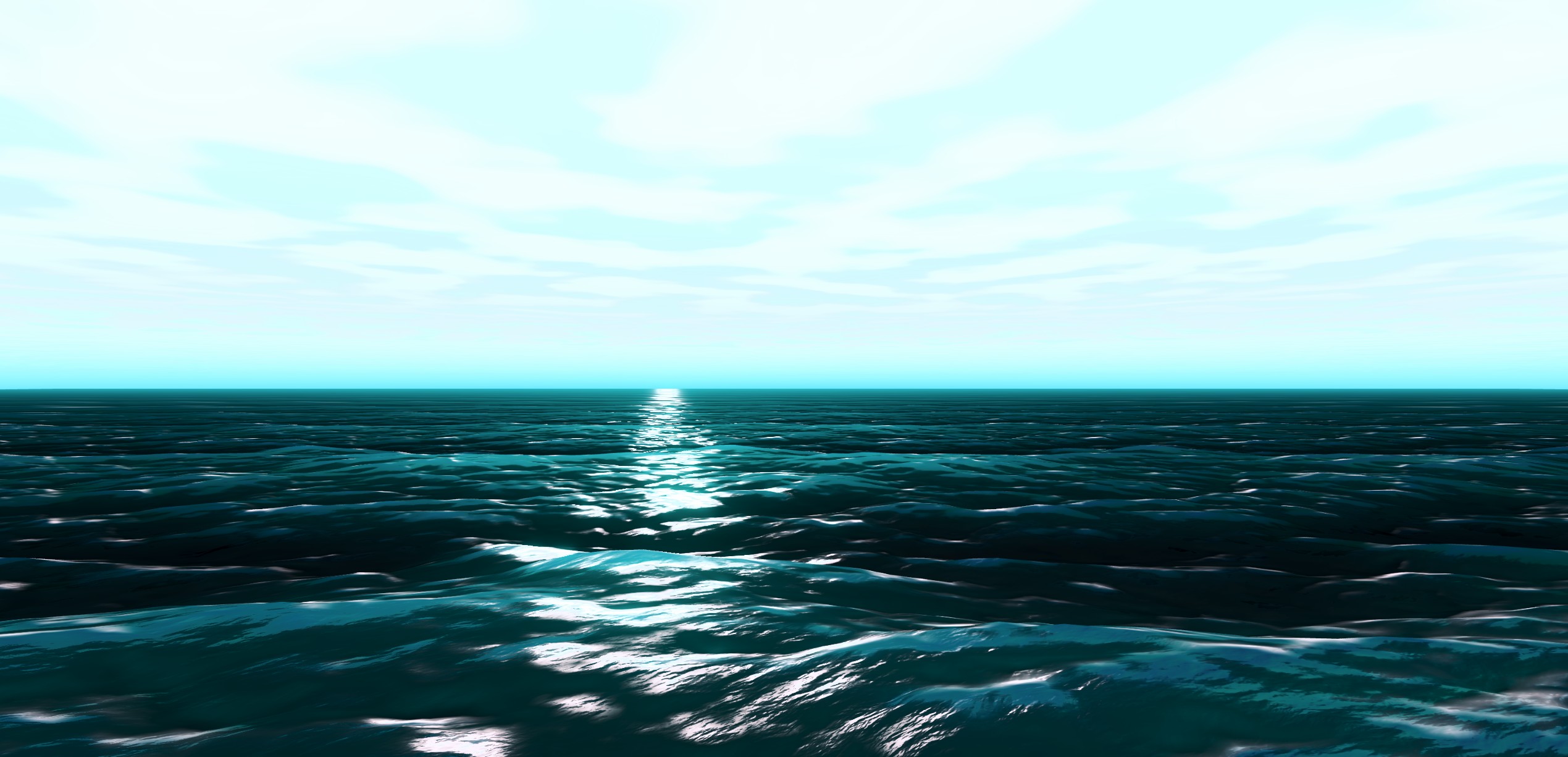

Working Ocean A working ocean scene from a demo Scene

If you see a flat plane or no water, check the Troubleshooting section below.

Complete Hierarchy​

Your final hierarchy should look like this:

Scene
├── OceanSystem
│   ├── OceanSimulator
│   └── PostProcessVolume
│   └── BakedReflectionProbe
├── Directional Light
└── VR_Player_Camera

VROcean includes a pre-configured prefab for faster setup:

  1. Navigate to Assets/PlatypusIdeas/VROcean/Samples/Prefabs/
  2. Drag OceanBiomeManager.prefab into your scene
  3. Assign your biome profile to the SceneSystem component
  4. Enter Play Mode

The OceanBiomeManager prefab has all components pre-wired.

Minimal Code Setup​

If you prefer setting up via code, here is a complete example:

using UnityEngine;
using PlatypusIdeas.VROcean.Runtime.Scripts.Scene;
using PlatypusIdeas.VROcean.Runtime.Scripts.Ocean;

public class OceanBootstrap : MonoBehaviour
{
    [SerializeField] private AquaticBiomeProfile profile;
    [SerializeField] private Material oceanMaterial;

    void Start()
    {
        // Create root
        var root = new GameObject("OceanSystem");

        // Add simulator
        var simGo = new GameObject("OceanSimulator");
        simGo.transform.SetParent(root.transform);
        var simulator = simGo.AddComponent<OceanSimulator>();
        simulator.Profile = profile;

        // Add renderer
        var renderGo = new GameObject("SurfaceRenderer");
        renderGo.transform.SetParent(root.transform);
        var renderer = renderGo.AddComponent<SurfaceLodRenderer>();
        renderer.SurfaceMaterial = oceanMaterial;

        // Add and configure scene system
        var sceneSystem = root.AddComponent<SceneSystem>();
        // Note: SceneSystem finds child components automatically if using the prefab workflow
    }
}

Adjusting Wave Settings​

With the ocean running, you can adjust wave behavior in real-time:

  1. Select your biome profile asset
  2. Expand the Wave Config section
  3. Adjust Wind Speed to change wave height (0-64 m/s)
  4. Adjust Choppiness to change wave sharpness (0-1)
  5. Changes apply immediately in Play Mode
// Or adjust via code at runtime
var profile = SceneSystem.Instance.GetComponent<SceneSystem>();
// Access the profile and modify WaveConfig values

Troubleshooting​

No Water Visible​

  • Verify the Surface Material is assigned on both the profile and the SurfaceLodRenderer
  • Check that the camera is positioned above the ocean (default Y position is 0)
  • Ensure the Ocean Size is large enough to be visible from camera position

Flat Surface (No Waves)​

  • Confirm you are in Play Mode (simulation only runs during play)
  • Check that Target Profile is assigned on SceneSystem
  • Verify Wind Speed in the profile is greater than 0

Pink/Magenta Surface​

  • The material shader cannot compile. Ensure URP is active in Project Settings
  • Reimport the shader files

Low Framerate​

  • Reduce Quality preset on SurfaceLodRenderer
  • Lower the Resolution on OceanSimulator (try 64x64 or 128x128)
  • See VR Performance Guide for detailed optimization
