Swarm Integration

AirPath includes a swarm system for controlling multiple agents (birds, drones, etc.) that follow calculated paths. This page explains how to set up and customize swarm behavior.

Overview

The swarm system consists of:

• SwarmConfiguration — ScriptableObject defining swarm behavior
• DemoAirAgentConfiguration — ScriptableObject for individual agent settings
• SwarmDemoController — Manages spawning and coordinates agents
• DemoAirAgent — Individual agent with path following and smoothing

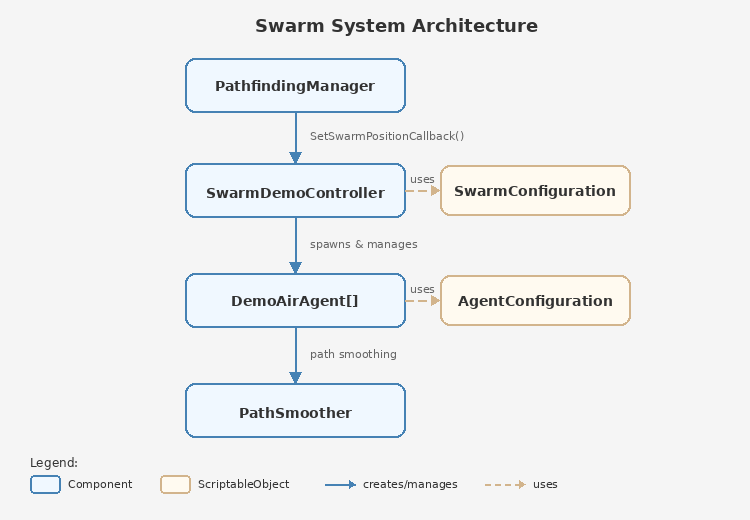

Architecture

The key integration point is SetSwarmPositionCallback() — this allows PathfindingManager to query the swarm's average position for pathfinding calculations without tight coupling.

Quick Setup

Step 1: Create Configuration Assets

SwarmConfiguration:

Right-click in Project → Create → Pathfinding → Configurations → Swarm Configuration

Setting	Default	Description
Number Of Agents	5	How many agents to spawn
Spawn Radius	5	Radius around spawn point
Agent Height Offset	10	Height above terrain
Path Follow Radius	3	How closely agents follow the path
Height Variation	2	Vertical spread between agents
Stagger Delay	0.5	Max delay between agent starts
Maintain Formation	true	Keep relative positions

DemoAirAgentConfiguration:

Right-click in Project → Create → Pathfinding → Configurations → Bird Agent Configuration

Setting	Default	Description
Bird Prefab	—	Prefab with DemoAirAgent component
Auto Spawn On First Path	true	Spawn agents when first path arrives
Move Speed	10	Agent movement speed
Rotation Speed	5	How fast agents turn
Enable Path Smoothing	true	Smooth corners with Bezier curves

Step 2: Create Agent Prefab

1. Create a GameObject with your visual (mesh, particle system, etc.)
2. Add the DemoAirAgent component
3. Save as prefab
4. Assign to DemoAirAgentConfiguration's Bird Prefab field

Step 3: Add SwarmDemoController

1. Create empty GameObject named "SwarmController"
2. Add SwarmDemoController component
3. Assign both configuration assets

Step 4: Connect to PathfindingManager

The SwarmDemoController automatically registers with PathfindingManager on Start:

// This happens automatically in SwarmDemoController.Start()
_pathfindingManager.SetSwarmPositionCallback(GetAverageBirdPositionCallback);

When using TargetFollow mode, PathfindingManager calls this callback to get the swarm's current position as the path start point.

SwarmConfiguration Reference

[CreateAssetMenu(menuName = "Pathfinding/Configurations/Swarm Configuration")]
public class SwarmConfiguration : ConfigurationBase

Swarm Settings

Property	Type	Range	Description
NumberOfAgents	int	1-50	Total agents in swarm
SpawnRadius	float	0-20	Circular spawn area radius
AgentHeightOffset	float	0-50	Base height above spawn point

Swarm Behavior

Property	Type	Range	Description
PathFollowRadius	float	0-10	How far agents can deviate from path
HeightVariation	float	0-10	Random height offset per agent
StaggerDelay	float	0-2	Maximum start delay for natural movement
MaintainFormation	bool	—	Keep relative positions during flight

Movement Settings

Property	Type	Range	Description
DefaultMoveSpeed	float	1-50	Base movement speed
DefaultRotationSpeed	float	1-20	Base rotation speed
ReachThreshold	float	0.5-5	Distance to consider waypoint reached

DemoAirAgent Reference

The DemoAirAgent component handles individual agent movement with path smoothing.

Inspector Settings

Movement:

Setting	Default	Description
Move Speed	10	Units per second
Rotation Speed	5	Rotation interpolation speed
Reach Threshold	2	Distance to trigger next waypoint

Path Smoothing:

Setting	Default	Description
Enable Path Smoothing	true	Use Bezier curves at corners
Corner Angle Threshold	45°	Minimum angle to trigger smoothing
Min Turn Radius	3	Tightest turn radius
Max Turn Radius	10	Widest turn radius
Terrain Clearance	2	Minimum height above terrain
Preferred Clearance	5	Ideal height above terrain

Turn Rate Limiting:

Setting	Default	Description
Enable Turn Rate Limit	true	Prevent unrealistic instant turns

Key Methods

// Initialize swarm behavior with offsets
void InitializeSwarmBehavior(float offsetRadius, float heightVariation)

// Assign a path to follow
void SetPath(List<Vector3> worldPath, bool teleportToStart = true)

// Control movement
void StopMovement()
void PauseMovement()
void ResumeMovement()

// Current position (read-only)
Vector3 CurrentPosition { get; }

SwarmDemoController Reference

The controller manages the swarm lifecycle and coordinates with PathfindingManager.

Inspector Settings

Setting	Description
Swarm Config	Reference to SwarmConfiguration asset
Demo Air Agent Config	Reference to DemoAirAgentConfiguration asset

Properties

// Current average position of all agents
Vector3 AverageBirdPosition { get; }

// Whether configurations are valid
bool IsConfigured { get; }

// Number of active agents
int BirdCount { get; }

Methods

// Destroy all agents and reset state
void ResetSwarm()

Automatic Behavior

1. On Start: Validates configuration, registers callback with PathfindingManager
2. On PathCalculatedEvent: Spawns agents (if first path) and assigns path to all agents
3. On Update: Calculates average position, publishes SwarmUpdateEvent every 30 frames

Events

SwarmUpdateEvent

Published by SwarmDemoController at key moments:

this.Subscribe<SwarmUpdateEvent>(evt =>
{
    switch (evt.Type)
    {
        case SwarmUpdateEvent.UpdateType.BirdsSpawned:
            Debug.Log($"Spawned {evt.AgentCount} agents at {evt.Position}");
            break;

        case SwarmUpdateEvent.UpdateType.BirdsStartedPath:
            Debug.Log($"Agents started following path with {evt.Path.Count} waypoints");
            break;

        case SwarmUpdateEvent.UpdateType.SwarmPositionUpdated:
            Debug.Log($"Swarm center: {evt.Position}");
            break;
    }
});

Update Types:

Type	When Published
BirdsSpawned	After agents are instantiated
BirdsStartedPath	When path is assigned to agents
BirdReachedTarget	When an agent completes its path
AllBirdsReachedTarget	When all agents complete paths
SwarmPositionUpdated	Every 30 frames with current position

Path Smoothing

DemoAirAgent includes sophisticated path smoothing for natural flight paths.

How It Works

1. Raw path from A* has sharp corners
2. PathSmoother detects corners above threshold angle
3. Bezier curves replace sharp turns
4. Speed modifiers slow agents through turns

Configuration

var smoothingConfig = new PathSmoother.SmoothingConfig {
    CornerAngleThreshold = 45f,   // Degrees
    MinTurnRadius = 3f,
    MaxTurnRadius = 10f,
    BezierSegments = 5,           // Curve resolution
    TerrainClearance = 2f,
    PreferredClearance = 5f,
    TurnSpeedMultiplier = 0.7f    // Slow down in turns
};

Bird Variation

Each agent gets random variation for natural flocking:

var variation = new PathSmoother.BirdVariation {
    speedMultiplier = Random.Range(0.9f, 1.1f),
    turnRadiusMultiplier = Random.Range(0.8f, 1.2f),
    heightPreference = Random.Range(-2f, 2f),
    reactionDelay = Random.Range(0f, 0.3f)
};

Creating Custom Agents

You can create your own agent types based on DemoAirAgent.

Minimal Custom Agent

using System.Collections.Generic;
using UnityEngine;

public class SimpleAgent : MonoBehaviour
{
    [SerializeField] private float moveSpeed = 10f;
    [SerializeField] private float reachThreshold = 2f;

    private List<Vector3> _path;
    private int _currentIndex;
    private bool _isMoving;

    public Vector3 CurrentPosition => transform.position;

    public void SetPath(List<Vector3> path, bool teleportToStart = true)
    {
        _path = new List<Vector3>(path);
        _currentIndex = 0;
        _isMoving = true;

        if (teleportToStart && _path.Count > 0)
        {
            transform.position = _path[0];
        }
    }

    private void Update()
    {
        if (!_isMoving || _path == null || _currentIndex >= _path.Count)
            return;

        var target = _path[_currentIndex];

        // Move toward target
        transform.position = Vector3.MoveTowards(
            transform.position,
            target,
            moveSpeed * Time.deltaTime
        );

        // Rotate toward target
        var direction = (target - transform.position).normalized;
        if (direction != Vector3.zero)
        {
            transform.rotation = Quaternion.Slerp(
                transform.rotation,
                Quaternion.LookRotation(direction),
                5f * Time.deltaTime
            );
        }

        // Check if reached waypoint
        if (Vector3.Distance(transform.position, target) < reachThreshold)
        {
            _currentIndex++;

            if (_currentIndex >= _path.Count)
            {
                _isMoving = false;
                Debug.Log($"{name} completed path");
            }
        }
    }
}

Custom Swarm Controller

public class CustomSwarmController : MonoBehaviour
{
    [SerializeField] private GameObject agentPrefab;
    [SerializeField] private int agentCount = 10;
    [SerializeField] private float spawnRadius = 5f;

    private List<SimpleAgent> _agents = new();
    private PathfindingManager _pathfindingManager;

    private void Start()
    {
        _pathfindingManager = FindFirstObjectByType<PathfindingManager>();
        _pathfindingManager?.SetSwarmPositionCallback(GetAveragePosition);

        this.Subscribe<PathCalculatedEvent>(OnPathCalculated);
    }

    private Vector3 GetAveragePosition()
    {
        if (_agents.Count == 0) return transform.position;

        var sum = Vector3.zero;
        foreach (var agent in _agents)
        {
            sum += agent.CurrentPosition;
        }
        return sum / _agents.Count;
    }

    private void OnPathCalculated(PathCalculatedEvent evt)
    {
        if (!evt.Success) return;

        // Spawn agents if needed
        if (_agents.Count == 0)
        {
            SpawnAgents();
        }

        // Assign path to all agents
        foreach (var agent in _agents)
        {
            agent.SetPath(evt.WorldPath);
        }
    }

    private void SpawnAgents()
    {
        for (int i = 0; i < agentCount; i++)
        {
            var offset = Random.insideUnitSphere * spawnRadius;
            offset.y = Mathf.Abs(offset.y); // Keep above ground

            var go = Instantiate(agentPrefab, transform.position + offset, Quaternion.identity);
            var agent = go.GetComponent<SimpleAgent>();

            if (agent != null)
            {
                _agents.Add(agent);
            }
        }
    }
}

Best Practices

Performance

• Keep agent count reasonable (under 50 for most cases)
• Use object pooling for frequently spawned/destroyed agents
• Disable path smoothing if not needed
• Increase stagger delay to spread out path assignments

Visual Quality

• Enable path smoothing for natural flight paths
• Use height variation for depth in the swarm
• Add slight speed variation for organic movement
• Consider adding bobbing/banking animations

Integration

• Always register swarm callback before paths are calculated
• Handle agent destruction gracefully (null checks)
• Use events for loose coupling between systems
• Reset swarm state on scene transitions

See Also

• Pathfinding Manager — SetSwarmPositionCallback
• Events — SwarmUpdateEvent details
• Pathfinding Modes — TargetFollow mode for swarm tracking
