Architecture Overview

AirPath is designed around three core principles: performance, flexibility, and loose coupling. This page explains how the major systems work together.

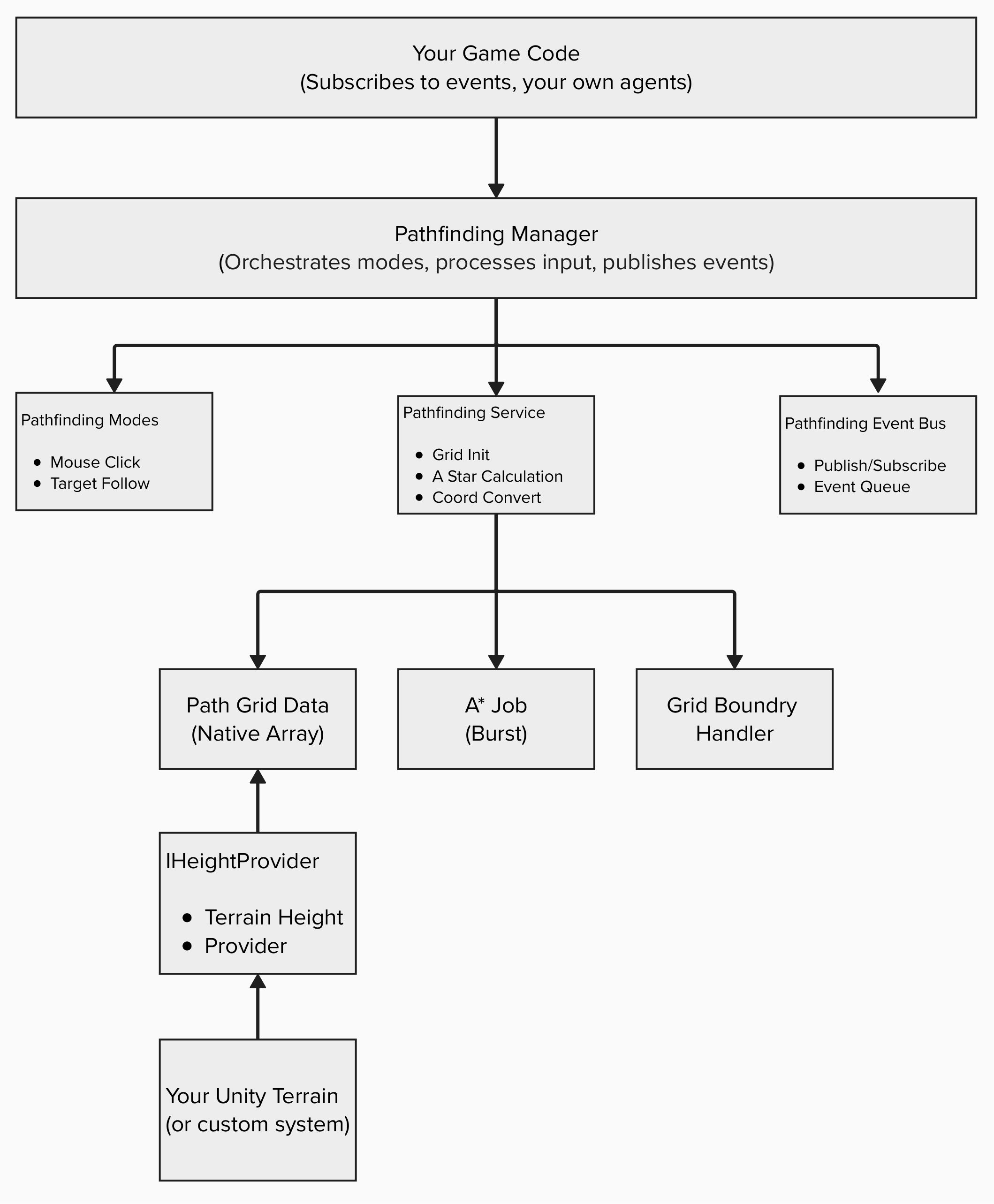

System Architecture

Data Flow

When you request a path, here's what happens:

1. Request

A pathfinding mode (MouseClick or TargetFollow) creates a PathRequest with start/end positions.

User clicks terrain → MouseClickMode → PathRequest created

2. Grid Conversion

World positions are converted to grid coordinates using GridBoundaryHandler. Out-of-bounds positions are clamped if configured.

World (150, 0, 200) → Grid (9, 12)

3. A* Calculation

The PathfindingService schedules a Burst-compiled A* job. The job runs on a worker thread using NativeArrays from PathGridData.

Start (9, 12) → A* Algorithm → Path [indices...]

4. Path Conversion

Grid indices are converted back to world positions with terrain height applied.

Grid path → World path with heights → List<Vector3>

5. Event Publication

Results are published via PathfindingEventBus. Any subscribed component receives the path.

PathCalculatedEvent → Your agent controller → Agent follows path

Key Components

PathfindingManager

The central orchestrator. It:

• Manages pathfinding modes (MouseClick, TargetFollow)
• Initializes the PathfindingService
• Handles mode switching
• Publishes events for path requests and results

You configure it in the Inspector and rarely interact with it from code.

→ Setup Guide

---

PathfindingService

The core pathfinding engine. It:

• Maintains the pathfinding grid (NativeArrays)
• Executes Burst-compiled A* jobs
• Handles coordinate conversion
• Manages boundary clamping

For direct path calculation without modes, use this class.

→ API Reference

---

IHeightProvider

An interface that abstracts terrain data. AirPath doesn't depend on Unity Terrain directly, it asks an IHeightProvider for height data.

Built-in: TerrainHeightProvider for Unity Terrain.

Custom: Implement IHeightProvider for procedural terrain, meshes, or voxels.

→ API Reference

---

PathfindingEventBus

A ScriptableObject-based event system. Components communicate through events rather than direct references.

Key events:

• PathRequestedEvent — Path calculation started
• PathCalculatedEvent — Path calculation complete
• PathfindingModeChangedEvent — Mode switched

→ API Reference

---

Configuration System

All settings are stored in ScriptableObject assets:

Asset	Purpose
PathfindingConfiguration	Grid size, cost multipliers, boundary handling
VisualizationConfiguration	Path line, cell colors, debug display
PathfindingEventBus	Event system settings

This allows hot-swapping configurations and keeping scenes clean.

Design Principles

Event-Driven Communication

Components don't hold direct references to each other. Instead, they:

• Publish events when something happens
• Subscribe to events they care about

This makes the system modular — you can remove visualization without breaking pathfinding.

Interface Abstraction

AirPath uses IHeightProvider instead of depending on Unity Terrain directly. This means:

• You can use any height source
• Testing is easier (mock height providers)
• The core algorithm is terrain-agnostic

DOTS for Performance

The A* algorithm is:

• Burst-compiled — Native code performance
• Job System — Runs on worker threads
• NativeArrays — No GC allocation during pathfinding

This keeps pathfinding off the main thread and avoids frame hitches.

ScriptableObject Configuration

Settings live in assets, not scenes. Benefits:

• Share configurations across scenes
• Swap presets at runtime
• Version control friendly
• No scene modifications for setting changes

Thread Safety

Component	Thread	Notes
PathfindingManager	Main	Unity APIs require main thread
PathfindingService	Main	Schedules jobs, handles results
A* Job	Worker	Burst-compiled, no Unity API calls
Event Bus	Main	Events processed on main thread
Height Provider	Main	Called during initialization

The A* calculation runs on a worker thread, but CalculatePath() blocks until complete. For truly async pathfinding, consider wrapping in a coroutine.

Next Steps

• Grid System — How the pathfinding grid works
• Pathfinding Algorithm — The A* implementation
