Grid System

AirPath uses a 2D grid projected over your terrain to represent navigable space. This page explains how the grid works and how to configure it.

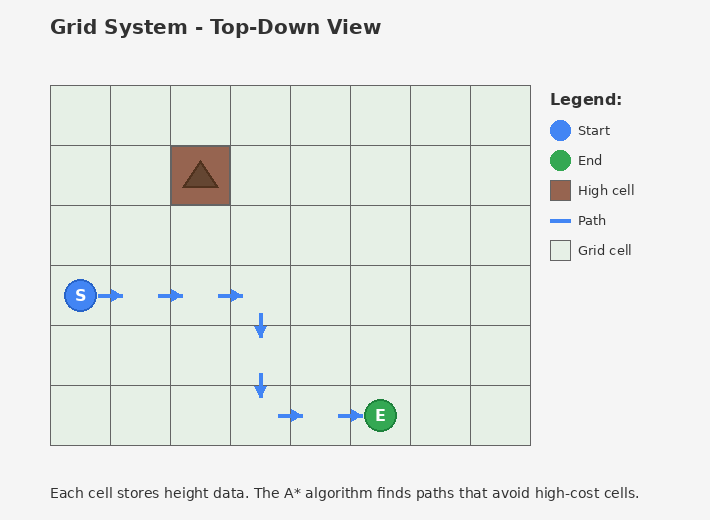

What is the Grid?​

The pathfinding grid is a 2D array of cells overlaid on your 3D terrain. Each cell stores:

  • Height — Terrain elevation at that cell (sampled from your height provider)
  • Walkability — Whether the cell can be traversed (all cells are walkable by default)
  • Pathfinding state — Temporary data used during A* calculation
How AirPath Works - Architecture Overview

The A* algorithm finds paths through this grid, preferring cells with lower height costs.

Coordinate System​

AirPath uses two coordinate systems:

World Space (Unity)​

Standard Unity coordinates — X, Y (up), Z.

Grid Space​

2D integer coordinates — X and Y (note: grid Y = world Z).

World Space:              Grid Space:

    Y (height)              (0,0)───────► X (GridWidth)
    │                         │
    │                         │  Each cell is one
    │                         │  grid unit
    └────────► X              │
   /                          ▼
  Z                         Y (GridHeight)
Origin

Mapping:

  • Grid X → World X
  • Grid Y → World Z
  • World Y → Stored as height value in the cell

Conversion Example​

Terrain: 1000 x 1000 units
Grid: 64 x 64 cells
Cell Size: 1000 / 64 = 15.625 units

World position (150, 25, 200):
  Grid X = Floor(150 / 15.625) = 9
  Grid Y = Floor(200 / 15.625) = 12
  Height = 25 (stored in cell)

Result: Grid position (9, 12)

Cell Size and Resolution​

The grid resolution is controlled by Samples Per Dimension in PathfindingConfiguration.

Cell Size = Terrain Size / Samples Per Dimension
Terrain SizeSamplesCell SizeTotal Cells
10003231.251,024
10006415.6254,096
10001287.812516,384
10002563.90665,536

Trade-offs​

Higher resolution (more cells):

  • ✅ More accurate paths
  • ✅ Better navigation around small obstacles
  • ❌ More memory usage
  • ❌ Longer pathfinding time

Lower resolution (fewer cells):

  • ✅ Faster pathfinding
  • ✅ Less memory
  • ❌ Paths may cut corners
  • ❌ Small terrain features ignored

Recommendation: Start with 64×64. Increase if paths look jagged, decrease if pathfinding is slow.

Height Sampling​

When the grid initializes, it samples heights from your IHeightProvider.

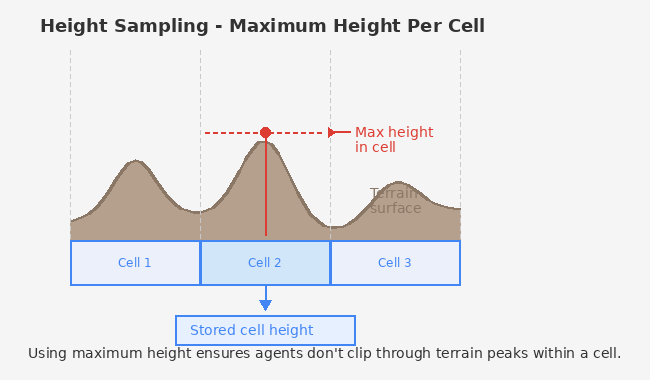

How Sampling Works​

  1. Grid divides terrain into cells
  2. For each cell, samples the underlying terrain
  3. Takes the maximum height within the cell area
  4. Stores this height for pathfinding cost calculation
How AirPath Works - Architecture Overview

Using maximum height ensures agents don't clip through terrain peaks within a cell.

When Heights are Sampled​

  • Once during PathfindingService.Initialize()
  • Cached for all subsequent pathfinding requests
  • Call TerrainHeightProvider.InvalidateCache() if terrain changes at runtime

Grid Origin​

The grid origin (cell 0,0) aligns with the terrain's transform position.

// From TerrainHeightProvider
public Vector3 Origin => terrain.transform.position;

If your terrain is at (100, 0, 50), grid cell (0, 0) maps to world position (100, 0, 50).

Memory Layout​

Internally, the grid uses flat arrays indexed by y * width + x:

Grid:           Array index:
┌───┬───┬───┐
│ 0 │ 1 │ 2 │   Row 0: indices 0, 1, 2
├───┼───┼───┤
│ 3 │ 4 │ 5 │   Row 1: indices 3, 4, 5
├───┼───┼───┤
│ 6 │ 7 │ 8 │   Row 2: indices 6, 7, 8
└───┴───┴───┘

index = y * width + x
position = (index % width, index / width)

This layout is optimized for cache-friendly access in Burst jobs.

Boundary Handling​

Positions outside the grid can be handled two ways:

Auto-clamp (default): Out-of-bounds positions are clamped to the nearest valid cell. A BoundaryViolationEvent is published.

Strict: Out-of-bounds positions return errors. Useful for debugging.

Configure in PathfindingConfiguration:

  • Auto Clamp Out Of Bounds — Enable/disable clamping
  • Show Clamp Warnings — Log when clamping occurs
