Pathfinding Algorithm

AirPath uses a height-aware A* algorithm optimized for aerial navigation. This page explains how the algorithm works and how it calculates path costs.

A* Overview​

A* is a best-first search algorithm that finds the shortest path between two points. It uses two values for each cell:

  • G Cost — Actual cost to reach this cell from the start
  • H Cost — Estimated cost to reach the end (heuristic)
  • F Cost — Total cost (G + H)

The algorithm always explores the cell with the lowest F cost next, guaranteeing an optimal path.

Height-Aware Cost Model​

Standard A* only considers distance. AirPath adds height-based costs to create natural flight paths that prefer valleys over mountains.

Cost Formula​

Total G Cost = Previous G + Movement Cost + Fly Cost

Where Fly Cost = Altitude Cost + Climb Cost + Slope Penalty

Cost Components​

1. Movement Cost (Distance)​

Base cost for moving between cells.

Cardinal (N/S/E/W):  1.0 × CellSize
Diagonal:           1.414 × CellSize  (√2)

2. Altitude Cost​

Penalizes being at high elevations. Makes paths prefer lower terrain.

Altitude Cost = Height × FlyCostMultiplier × 0.01

Effect: A cell at height 100 with multiplier 2.5 adds 100 × 2.5 × 0.01 = 2.5 to the cost.

3. Climb Cost​

Extra penalty for gaining altitude. Only applies when moving uphill.

If going uphill (heightDiff > 0):
    Climb Cost = HeightDifference × FlyCostMultiplier × 0.5

If going downhill or level:
    Climb Cost = 0

Effect: Climbing 10 units with multiplier 2.5 adds 10 × 2.5 × 0.5 = 12.5 to the cost.

4. Slope Penalty​

Penalizes rapid height changes in either direction. Smooths paths and avoids cliff edges.

Slope Penalty = |HeightDifference| × FlyCostMultiplier × 0.1

Effect: A 10-unit height change (up or down) with multiplier 2.5 adds 10 × 2.5 × 0.1 = 2.5 to the cost.

Complete Example​

Moving from a cell at height 50 to a neighbor at height 65 (cardinal direction):

Movement Cost:  1.0 × 15.625 (cell size)     = 15.625
Altitude Cost:  65 × 2.5 × 0.01              =  1.625
Climb Cost:     15 × 2.5 × 0.5               = 18.75
Slope Penalty:  15 × 2.5 × 0.1               =  3.75
                                              ───────
Total Cost:                                   39.75

Compare to moving to a cell at height 50 (same level):

Movement Cost:  1.0 × 15.625                 = 15.625
Altitude Cost:  50 × 2.5 × 0.01              =  1.25
Climb Cost:     0 (no climb)                 =  0
Slope Penalty:  0 (no height change)         =  0
                                              ───────
Total Cost:                                   16.875

The algorithm strongly prefers the level path.

Heuristic Function​

AirPath uses Octile distance — the optimal heuristic for 8-directional movement:

Octile Distance = max(dx, dy) + 0.414 × min(dx, dy)

Where dx and dy are the grid distances to the target.

This heuristic is:

  • Admissible — Never overestimates, guaranteeing optimal paths
  • Consistent — Ensures efficient search without revisiting nodes

Diagonal Movement​

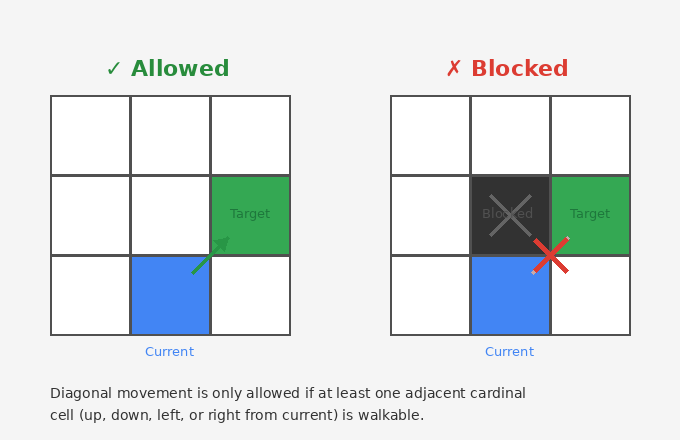

The algorithm supports 8-directional movement with corner-cutting prevention:

How AirPath Works - Architecture Overview

A diagonal move is only allowed if at least one adjacent cardinal cell is walkable.

FlyCostMultiplier​

The Fly Cost Multiplier in PathfindingConfiguration scales all height-based costs:

ValueEffect
0.5Weak height avoidance — paths may cross mountains
2.5Default — balanced height consideration
5.0Strong height avoidance — paths strongly prefer valleys
10.0Very strong — almost always takes lowest route

Tuning tip: Increase if paths cross terrain you'd expect them to avoid. Decrease if paths take unnecessarily long detours.

Performance Optimizations​

The A* job is heavily optimized:

Burst Compilation​

[BurstCompile(
    FloatMode = FloatMode.Fast,
    FloatPrecision = FloatPrecision.Standard,
    OptimizeFor = OptimizeFor.Performance
)]
  • Compiles to native code
  • SIMD vectorization where possible
  • No garbage collection

Memory Layout​

  • Flat arrays indexed by y × width + x
  • Cache-friendly access patterns
  • Pre-allocated NativeArrays (no allocation during pathfinding)

Algorithm Efficiency​

  • Early exit when destination reached
  • Processed nodes never revisited
  • Maximum iteration limit prevents infinite loops

Path Result​

The algorithm returns grid indices, which PathfindingService converts to world positions:

Grid Path:    [0] → [15] → [30] → [45] → [60]
                     ↓
World Path:   [(10, 5, 20), (25, 8, 35), (40, 12, 50), ...]

Each world position includes:

  • X/Z from grid cell center
  • Y from terrain height + height offset

Walkability​

All cells are walkable by default. The system checks IsWalkable but currently doesn't provide a way to mark cells as blocked. Future versions may add obstacle support.

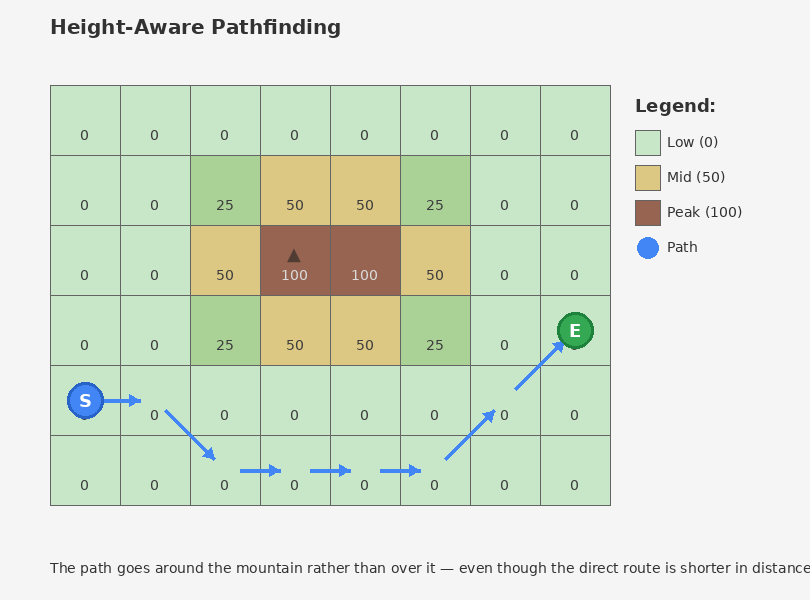

Algorithm Visualization​

How AirPath Works - Architecture Overview
