Custom Minimal Setup

Get AirPath running in your scene in under 5 minutes. This guide covers the minimal setup required to calculate your first aerial path.

Prerequisites

• AirPath installed in your project
• A scene with a Unity Terrain

No Terrain Yet?

You can quickly create a terrain via GameObject → 3D Object → Terrain. For testing, a flat terrain works fine — AirPath will still calculate paths.

Step 1: Create Configuration Assets

AirPath uses ScriptableObject assets for configuration. Let's create the required configs:

Pathfinding Configuration

1. Right-click in your Project window
2. Select Create → Pathfinding → Configurations → Pathfinding Configuration
3. Name it PathfindingConfig

Leave the default values for now. Key settings you can adjust later:

Setting	Default	Description
Samples Per Dimension	64	Grid resolution (64×64 = 4,096 cells)
Fly Cost Multiplier	2.5	How much to penalize high-altitude paths
Auto Clamp Out Of Bounds	true	Automatically fix out-of-bounds positions

Step 2: Create the Event Bus Asset

AirPath uses an event system for communication between components.

1. Right-click in your Project window
2. Select Create → EventSystem → PathfindingEventBus
3. Name it PathfindingEventBus

Step 3: Set Up the Scene

Now let's add the required components to your scene.

Add the Event Bus Handler

1. Create an empty GameObject: GameObject → Create Empty
2. Name it EventBusHandler
3. Add the EventBusUpdateHandler component
4. Assign your PathfindingEventBus asset to the Event Bus Asset field
5. Enable Persist Across Scenes if you want it to survive scene loads

Add the Height Provider

1. Select your Terrain GameObject
2. Add the TerrainHeightProvider component
3. The Terrain field should auto-populate (it's a required component)
4. Assign your PathfindingConfig asset to the Pathfinding Config field

Add the Pathfinding Manager

1. Create an empty GameObject: GameObject → Create Empty
2. Name it PathfindingManager
3. Add the PathfindingManager component
4. Assign references:
   • Height Provider: Your Terrain's TerrainHeightProvider
   • Terrain Controller: (Optional) For visualization features
5. Set Starting Mode to MouseClick for testing

Step 4: Test It

1. Press Play
2. Click on the terrain to set a start point (green marker appears)
3. Click again to set an end point and calculate the path

You should see:

• Console logs showing path calculation time
• The path calculated between your two points

[PathfindingService] Initialized with grid size 64x64, cell size: 15.625, flyCostMultiplier: 2.5
[PathfindingService] Path found: 45 waypoints in 2ms

Minimal Scene Hierarchy

Your scene hierarchy should look like this:

Scene
├── EventBusHandler          (EventBusUpdateHandler)
├── Terrain                  (Terrain + TerrainHeightProvider)
├── PathfindingManager       (PathfindingManager)
└── Main Camera

Complete Minimal Setup Code

If you prefer to set things up via code, here's how to initialize AirPath programmatically:

using PlatypusIdeas.AirPath.Runtime.Core.Grid;
using PlatypusIdeas.AirPath.Runtime.Core.Pathfinding;
using PlatypusIdeas.AirPath.Runtime.Core.Terrain;
using UnityEngine;

public class MinimalAirPathSetup : MonoBehaviour
{
    [SerializeField] private TerrainHeightProvider heightProvider;

    private PathfindingService _pathfindingService;

    void Start()
    {
        // Create grid configuration
        var config = new GridConfiguration(
            width: heightProvider.GridWidth,
            height: heightProvider.GridHeight,
            cellSize: heightProvider.CellSize,
            origin: heightProvider.Origin,
            flyCostMultiplier: 2.5f
        );

        // Initialize pathfinding service
        _pathfindingService = gameObject.AddComponent<PathfindingService>();
        _pathfindingService.Initialize(config, heightProvider);
    }

    public void CalculateTestPath()
    {
        // Calculate a path from world positions
        var path = _pathfindingService.CalculatePath(
            worldStart: new Vector3(100, 0, 100),
            worldEnd: new Vector3(400, 0, 400),
            heightOffset: 10f  // Fly 10 units above terrain
        );

        if (path != null)
        {
            Debug.Log($"Path found with {path.Count} waypoints!");
            foreach (var point in path)
            {
                Debug.Log($"  → {point}");
            }
        }
    }
}

About the Terrain Setup

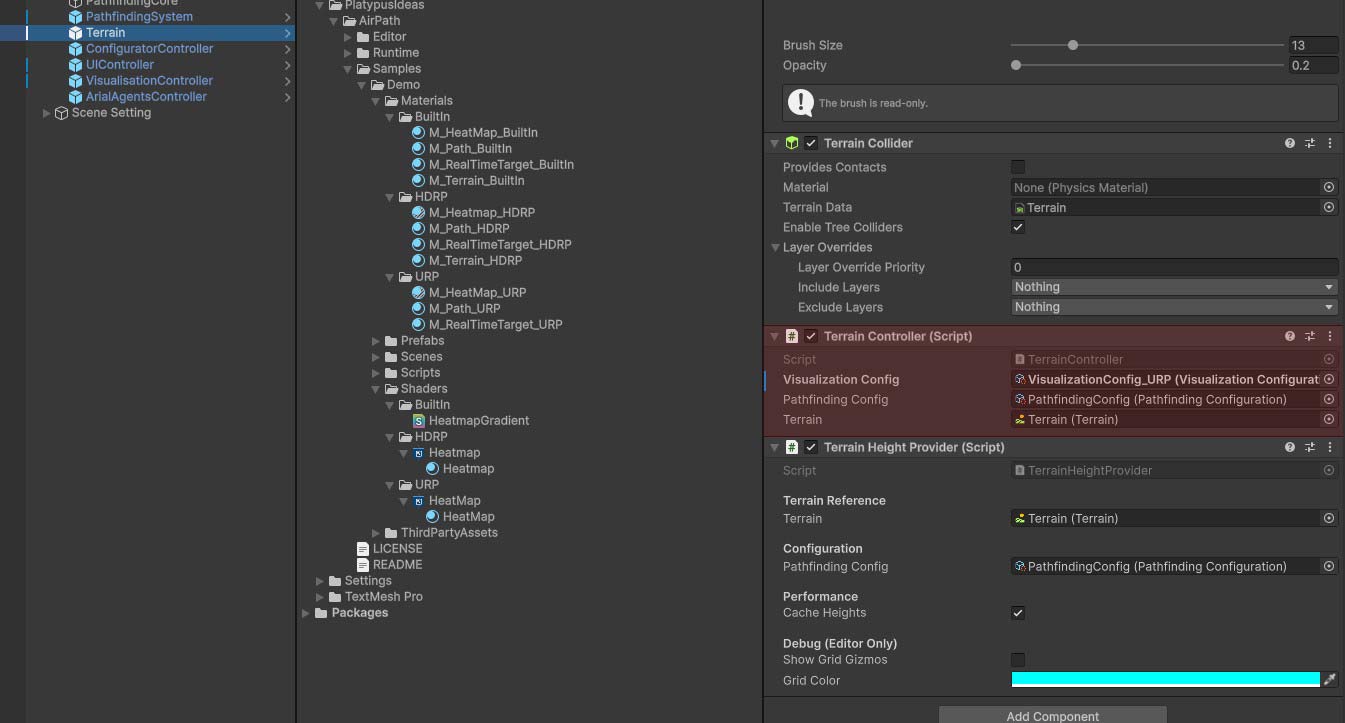

In the demo scene, you'll notice the Terrain GameObject has a TerrainController component attached. It's important to understand that this component is not required for AirPath to function.

TerrainController (Demo Only)

The TerrainController is our demo-specific implementation that provides:

• Debug visualization (heatmap grid overlay)
• Path cell coloring for visual feedback
• Runtime grid visibility toggling

This component exists purely for demonstration and debugging purposes. You are free to replace it with your own terrain management solution or remove it entirely in production.

TerrainHeightProvider (Required)

The only terrain-related component that AirPath actually requires is the TerrainHeightProvider. This component is responsible for supplying terrain height data to the pathfinding system.

Key Takeaway

TerrainHeightProvider = Required for pathfinding to work
TerrainController = Optional demo helper for visualization

If you're integrating AirPath into your own project and already have terrain management in place, you only need to ensure that a TerrainHeightProvider is configured. The visualization features from TerrainController can be useful during development but should typically be disabled or removed for release builds.

What's Next?

You now have a working AirPath setup! Here's where to go from here:

• Core Concepts — Understand how AirPath works
• Swarm Integration — Make agents follow the calculated paths

Troubleshooting Quick Start

"PathfindingEventBus instance not initialized"

Make sure you have an EventBusUpdateHandler component in your scene with the PathfindingEventBus asset assigned.

"heightProvider cannot be null"

The PathfindingManager needs a reference to a TerrainHeightProvider. Make sure:

1. Your Terrain has the TerrainHeightProvider component
2. You've assigned it to the PathfindingManager's Height Provider field

Path is always null

Check that:

1. Your start and end positions are within the terrain bounds
2. The PathfindingConfiguration asset is assigned to the height provider
3. Console shows "Initialized with grid size..." on Play

Performance is slow

For the quick start, try reducing the grid resolution:

1. Select your PathfindingConfig asset
2. Lower Samples Per Dimension to 32 (32×32 = 1,024 cells)

See Performance Tuning for detailed optimization guidance.
